What are Copper Fittings

Munot Metalloys is a trusted and leading manufacturer and supplier of Copper Fittings.We are manufacturing and supplying these Copper fittings in various size, shapes and different-different types.We are offering a wide variety of Copper Fittings for residential and commercial purposes. These Copper Fittings are very durable and very good at handling heat without losing any strength or shape, and it also provides resistance, corrosion and high water pressure. Fittings are generally used in mechanical and plumbing operations for several different purposes. It contains some key features like high tensile strength; it allows the flow of fluids or gases, regular sizes are readily available in the market etc. These Copper Fittings are manufactured as per the requirement of the clients.

• Munot Metalloys uses advanced Professional equipment to manufacture pipe fittings under relevant international & national products standards.
• All products are manufactured conforming to relevant products standards as follows:
• American standard ANSI/ASME B16.22-2001 and Japanese standard JISH3401.
•European standards: European Community's standard EN1254-1, British standard BS864-2 and German standard DIN2856.

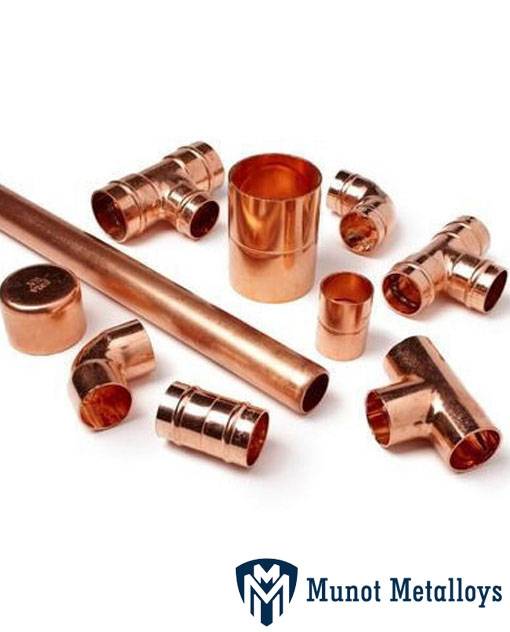

Available in 90 and 45 angles, our elbows are perfect fitments for angular joints changing the direction of the pipe and have a close radius to fit in the tightest possible space. Many other varieties are available for specific requirements.

Ideal for compact applications, our U-bends are used to accommodate the return flow of the coolant, providing a 180 turn in a much smaller space. We manufacturer both expanded as well as plain U-bends for condensers and evaporators.

We offer couplings in various dimensions, which connect two pipes of different diameters and joint two identical size tubes.

Tee fits in the shape of a 'T' where the top is the continuous pipe run, and the vertical section is a branch connected to it. Tees offer multiple options and are used in a variety of applications. We offer varieties of Tees multiple dimensions like one end having a smaller diameter and cross Tees, which are used to connect four tubes or a threaded Tee when the vertical section has female threads.

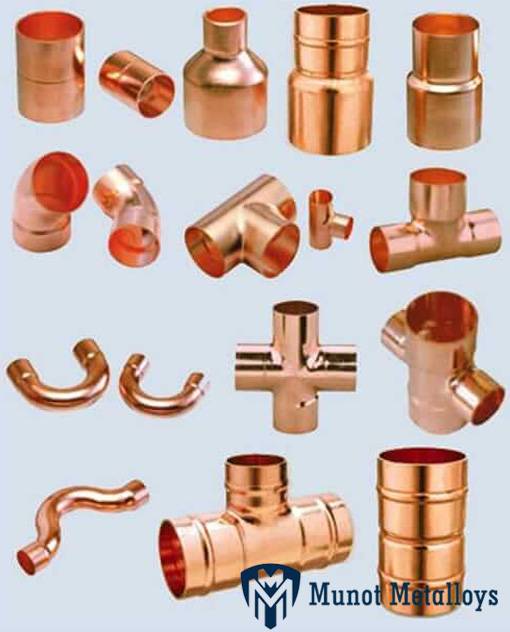

Reducers are a type of fitting which is used to connect two copper pipes. They come in many different sizes allowing us to use one copper fitting for these copper pipe connections. The general sizes available are 1/2" x 1/4", 1/2" x 3/8", 5/8" x 1/4", 5/8" x 3/8", 5/8" x 1/2", 3/4" x 1/2", 1" x 1/2", 1" x 3/4", etc. as per the client specification.

Non-Standard Fittings:
Munot Metalloys also manufacturers non-standard custom made fittings as per client design and specifications.

Copper Fittings Specification

OD of Tube (mm)

12 15 22 28 35 42 54 67 76.1 108
Table‘X’ Nominal Thickness (mm) 0.6 0.7 0.9 0.9 1.2 1.2 1.2 1.2 1.5 1.5
Table‘X’ Maximum Working Pressure (bar) 64 59 51 41 43 35 27 19 23 17
Table‘Y’ Nominal Thickness (mm) 0.8 1.0 1.0 1.2 1.5 1.5 2.0 2 2.0 2.5
Table‘Y’ Maximum Working Pressure (bar) 87 87 69 55 54 45 47 36 32 29
Table‘Z’ Nominal Thickness (mm) 0.5 0.5 0.6 0.6 0.7 0.8 0.9 1.2 1.2 1.2
Table‘Z’ Maximum Working Pressure (bar) 62 51 41 32 31 29 26 20 19 17

Other Types of Copper Fittings

Copper Fittings

  • Copper Alloy Fittings
  • Copper C10100 Fittings Stockist
  • Copper C10300 Pipe Fittings
  • Copper Fittings Supplier
  • Copper Butt Weld Fittings
  • Copper Alloy Fittings manufacturer
  • ASTM B828 Copper Fittings
  • Copper 1D, 2D, 3D, 5D Elbow
  • Copper 90deg. LR Elbow
  • Copper Alloy 180 degree SR Elbow

Copper Pipe Fittings

  • Copper C10200 Long Radius Elbow
  • Copper C10800 Short Radius
  • Copper C12000 Reducing Elbow
  • Copper Alloy 45° Elbow
  • ASME SB 828 Seamless Fittings
  • Copper Alloy Eccentric Reducer
  • Copper Concentric Reducer
  • Copper End Cap
  • Copper Alloy Pipe Cap
  • Copper Reducing Nipple

Application Industries for Copper Fittings

  HVAC Industry
  Electrical Industry
  Plumbing Sanitary Ware Industry
  MGPS Industry
  Constructions Industry
  Automobiles Industry
  Water & Gas Industry
  Electrical Engineering Industry
  Marine Engineering Industry
  Earthing Systems Industry
